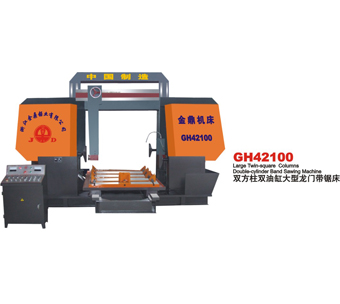

- Product Name: Saw two-goal
- Modle: GH42100
- Payment:
- Min Quantity:
- Made in:
Description
| Model | GH42100 |
| The max.sawing height | 1000mm |
| The max.sawing width | 1100mm |
| The main motor power | 7.5KW 6P |
| Feeding motor power | 3.75KW |
| The power of coolant pump | 150W |
| The way of feeding | hydraulic, stepless speed control |
| The way of sawing | Balde:Horizontal moving、upright sawing |
| The saw blade size(mm) | 67×1.6×8900 |
| Blade tensioning | hydraulic |
| Blade speed | 38~120 (m/min) Frequency control |
| Weight | 10T |
| Sound of the machine | ≤65FB |
| Standard | -Independent hydraulic station |
| -Separating electricity cabinet | |
| -Operation platform | |
| -Frequency control | |
| -Tension by hydraulic | |
| -Electric feeding | |
| Optional | -Automatic chip conveyor |
| -Roller electric feeding | |
| -Hydraulic platform feeding | |
| -PLC control |
