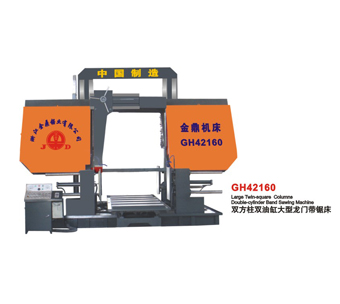

- Product Name: Saw two-goal
- Modle: GH42160
- Payment:
- Min Quantity:
- Made in:
Description
|
Model
|
GH42160
|
|
The max.sawing height
|
1600mm
|
|
The max.sawing width
|
1650mm
|
|
The main motor power
|
11（15）KW
|
|
Feeding motor power
|
5.5 KW 4级
|
|
The power of coolant pump
|
150 W
|
|
The way of feeding
|
hydraulic, stepless speed control
|
|
The way of sawing
|
Balde:Horizontal moving、upright sawing
|
|
The saw blade size(mm)
|
80X 1.8 X 12800
|
|
Blade tensioning strenght
|
125-160N.M Tension by hydraulic
|
|
Blade speed
|
（35m/min~120m/min Frequency control
|
|
Weight
|
20T
|
|
Sound of the machine
|
≤65dB
|
|
Standard
|
-Independent hydraulic station
-Separating electricity cabinet
-Operation platform
-Frequency control
-Tension by hydraulic
-Electric feeding
|
|
Optional
|
-Automatic chip conveyor
-Roller electric feeding
-Hydraulic platform feeding
|
