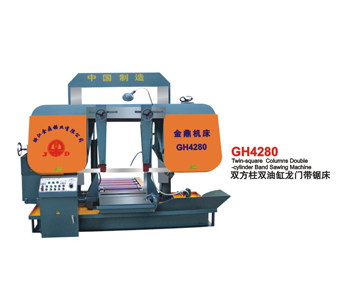

- Product Name: Saw two-goal
- Modle: GH4280
- Payment:
- Min Quantity:
- Made in:
Description
| Model | GH4280 |
| The max.sawing height | 800mm |
| The max.sawing width | 900mm |
| The main motor power | 7.5KW/6P 380V/50HZ |
| Feeding motor power | 4KW/4P 380V/50HZ |
| The power of coolant pump | 120W 380V/50HZ |
| The way of feeding | Hydraulic, stepless speed control |
| The way of sawing | Balde:Horizontal moving、upright sawing |
| The saw blade size(mm) | 54×1.6×7280 |
| Blade tensioning strength | 65-90N.M Tension by hydraulic |
| Blade speed | 35m/min-120m/min Frequency control |
| Weight | 8T |
| Sound of the machine | ≤65FB |
| Standard | 0 |
| -Tension by hydraulic | |
| -Electric feeding | |
| Optional | -Automatic chip conveyor |
| -PLC control |
