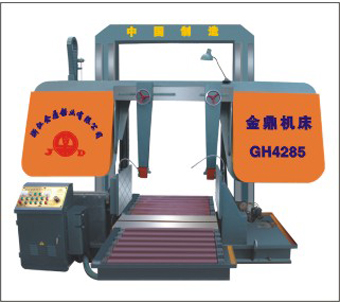

- Product Name: Saw two-goal
- Modle: GH4285
- Payment:
- Min Quantity:
- Made in:
Description
| Model | GH4285 |
| The max.sawing height | 850mm |
| The max.sawing width | 900mm |
| The main motor power | 7.5KW/4P 50HZ/380V |
| Feeding motor power | 4KW/4P 50HZ/380V |
| The power of coolant pump | 120W 380V/50HZ |
| The way of feeding | Hydraulic, stepless speed control |
| The way of sawing | Balde:Horizontal moving、upright sawing |
| The saw blade size(mm) | 54×1.6×8010 |
| Blade tensioning strength | 85-60N.M Tension by hydraulic |
| Blade speed | Frequency control |
| Weight | 8T |
| Sound of the machine | ≤65FB |
| Standard | -Independent hydraulic station |
| -Tension by hydraulic | |
| -Electric feeding | |
| Optional | -Separating electricity cabinet |
| -Operation platform | |
| -Frequency control | |
| -Roller electric feeding | |
| -Hydraulic platform feeding | |
| -Automatic chip conveyor | |
| -PLC control |
