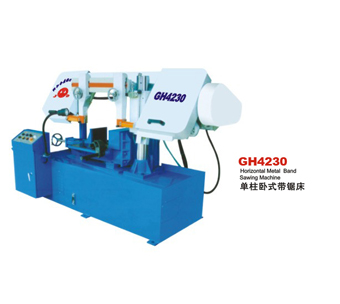

- Product Name: Single Cylinder Saw
- Modle: GH4230
- Payment:
- Min Quantity:
- Made in:
Description
| Model | GH4230 | GH4230NC |
| (Single column band sawing machine) | (Fully automatic) | |
| The max.sawing height | 300mm | 300mm |
| The max.sawing width | 500mm | 450mm |
| The main motor power | 3KW/4P 50HZ/380V | 3KW/4P 50HZ/380V |
| Feeding motor power | 0.55KW/4P 50HZ/380V | 2HP |
| 380V 50Hz | ||
| The power of coolant pump | 1/4HP 380V 50Hz | 1/4HP 380V 50Hz |
| The way of feeding | hydraulic, stepless speed control | hydraulic, stepless speed control |
| The way of sawing | Balde:Horizontal moving、upright sawing | Balde:Horizontal moving、upright sawing |
| The saw blade size(mm) | 4000mm*34*1.1mm | 3900*34*1.1 |
| Blade tensioning strenght | 45-60N.M | 45-60N.M |
| Blade speed | 35m/min 50m/min 80m/min | 35m/min 50m/min 80m/miM |
| Weight | 1000KG | 1900/2000KG |
| Sound of the machine | ≤83dB | ≤83dB |
| Standard | -3 speeds | -Tension by hydraulic |
| -Wrench | -Automaitc feeding | |
| -feed by manual | -PLC | |
| Optional | -Frequency control | -Frequency control |
| -Tension by hydraulic | -Automatic chip conveyor | |
| Electric feeding | The machine stop working Automatic when The blade broken. | |
| -Automatic chip conveyor | -Infrared aiming sight | |
| -PLC contro |
