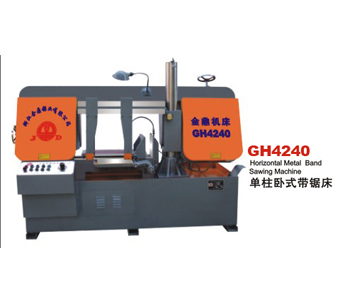

- Product Name: Single Cylinder Saw
- Modle: GH4240
- Payment:
- Min Quantity:
- Made in:
Description
| Model | GH4240 |
| (Single column band sawing machine) | |
| The max.sawing height | 400mm |
| The max.sawing width | 500mm |
| The main motor power | 4KW/4P 50HZ/380V |
| Feeding motor power | 2.2KW/4P 50HZ/380V |
| The power of coolant pump | 90w 50HZ/380V |
| The way of feeding | hydraulic, stepless speed control |
| The way of sawing | Balde:Horizontal moving、upright sawing |
| The saw blade size(mm) | 41*1.1*4280 |
| Blade tensioning strenght | 45-60N.M |
| Blade speed | 35m/min 50m/min 80m/min |
| Weight | 2T |
| Sound of the machine | ≤65dB |
| Standard | -3 speeds |
| -tension by handwheel | |
| -feed by manual | |
| Optional | -Frequency control |
| -Tension by hydraulic | |
| -Electric feeding | |
| -Automatic chip conveyor | |
| -PLC contro |
