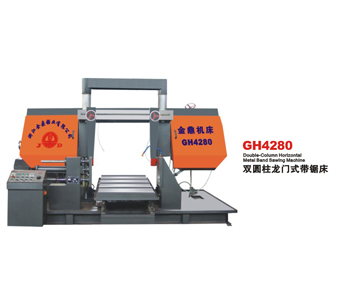

- Product Name: Two cylindrical goal Saw
- Modle: GH4280
- Payment:
- Min Quantity:
- Made in:
Description
| Model | GH4280 |
| The max.sawing height | 800mm |
| The max.sawing width | 900mm |
| The main motor power | 7.5KW/4P 50HZ/380V |
| Feeding motor power | 4KW/4P 50HZ/380V |
| The power of coolant pump | 120w 50HZ/380V |
| The way of feeding | Hydraulic, stepless speed control |
| The way of sawing | Balde:Horizontal moving、upright sawing |
| The saw blade size(mm) | 54（67）×1.6×8000 |
| Blade tensioning strenght | 75-60N.M Tension by hydraulic |
| Blade speed | 35m/min 50m/min 80m/min |
| Weight | 8T |
| Sound of the machine | ≤65FB |
| Standard | -3 speeds |
| -Tension by hydraulic | |
| -Roller electric feeding | |
| Optional | -Frequency control |
| -Automatic chip conveyor | |
| -PLC control | |
| -Hydraulic platform feeding |
